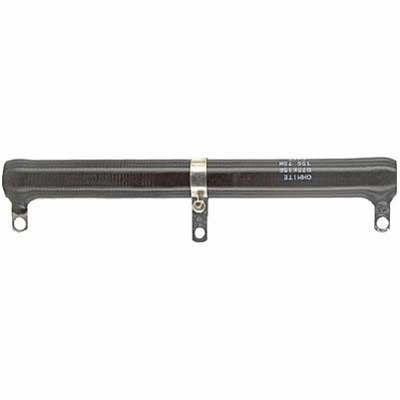

Ohmite D75K25RE

Image may be a representation.
See specs for product details.
Resistor; Wirewound; Res 25 Ohms; Pwr-Rtg 75 W; Tol 10%; Lug; Adjustable Tubular
Manufacturer #: D75K25RE
Allied Stock #: 70022719
RoHS Compliant
-
+
ADD TO CART UPDATE CART

Resources

Pricing (USD) & Availability
Standard Pricing
$26.41 (Each)
1 $26.41
50 $25.35
100 $24.03
Availability

16 can ship immediately.

Request Lead Time

Minimum Quantity: 1

Multiples Of: 1
Product Specifications
Product Attribute Attribute Value Search
Series Dividohm 210 Series
Package Type Adjustable Tubular
Power Rating 75 W
Resistance 25 Ohms
Termination Solder Lugs
Tolerance ±10 %
Element Material Wirewound
Voltage Rating 43 VAC

Overview

Type 210 adjustable resistors are used for applications requiring settings at different resistance values. These wirewound resistors are equipped with a screwdriver adjustable lug, making them ideal for adjusting circuits, obtaining odd resistance values and setting equipment to meet various line voltages. These resistors have a vitreous enamel coating with a strip of uncovered wire that makes contact with the adjustment lug. One screwdriver adjustment lug is provided with each resistor. The hollow core permits secure fastening with spring-type clips, thru bolts or thru bolts with washers. They also offer the durability and flame resistance of vitreous enamel coating and all-welded construction. Tolerance: ±10%. Note: The stated wattage rating applies only when the entire resistance is in the circuit. Setting the lug at an intermediate point reduces the wattage by the approximate same proportion.
