Bourns

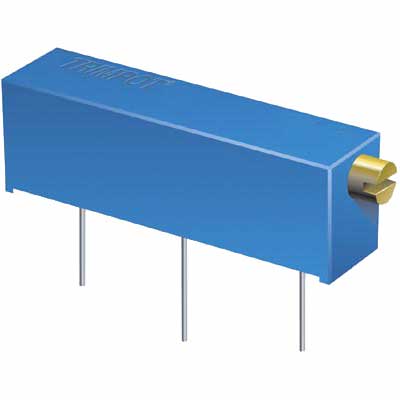

Bourns 3006P-1-103LF

Mfr. Part #: 3006P-1-103LF
Allied Stock #: 70153559

Description

Trimmer,Cermet,Rest 10 Kilohms,PCB,Pwr-Rtg 0.75W,Dim 0.75InLx0.19InWx0.25InH

Datasheet Download Datasheet

RoHS Compliant RoHS Compliant

Availability

Can ship immediately:

1856

Request Lead Time

Price

Qty.

Standard Price

1

$2.06

50

$2.00

100

$1.96

500

$1.87

1000

$1.77

5000

$1.65

Minimum Qty: 1
Multiples Of: 1
-
+
Unit Price:
$
/ Each
Total Price:
$
ADD TO CART UPDATE CART Add Update Cart button
Product Specifications
Product Attribute Attribute Value Search
Dielectric Strength 1000 V
Dimensions 0.75" L x 0.19" W x 0.25" H
Element Material Cermet
Insulation Resistance 1000 Megohms
Load Life 1000 hr
Maximum Operating Temperature +125 °C
Mechanical Angle Wiper idles
Minimum Operating Temperature -55 °C
Mounting Type Through Hole
Number of Turns 15
Power Rating 0.75 W
Primary Type Trimmers
Resistance 10 kOhms
Resolution Infinite
Rotational Life 200 Cycles
Series 3006 Series
Temperature Coefficient ±100 ppm/°C
Termination Solderable Pins
Tolerance ±10 %
Torque 5 Oz./in.
Weight 0.04 Oz.

Overview

1⁄4" High, low cost cermet trimmer offers infinite resolution. Sealed to withstand wave soldering and immersion cleaning.
Features:
  • Power Rating: 0.75 Watt at 70°C
  • Tolerance: ±10%
  • Low Temperature Coefficient: ±100 ppm/°C
  • Temperature Range: –55°C to +125°C
  • Load Life: 1000 Hours, 0.75 Watt at 70°C
  • Suffix: P, W and Y Styles
  • Dimensions: 3⁄4" × 0.19" × 0.25". See Drawings Above for Pin Configurations
  • Weight: 0.04 Oz.
  • Termination Finishes: 100% Tin
