Molex Incorporated 02-09-2118

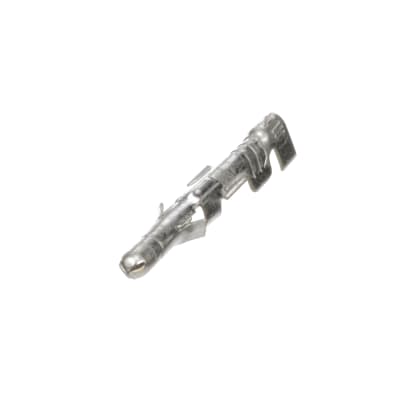

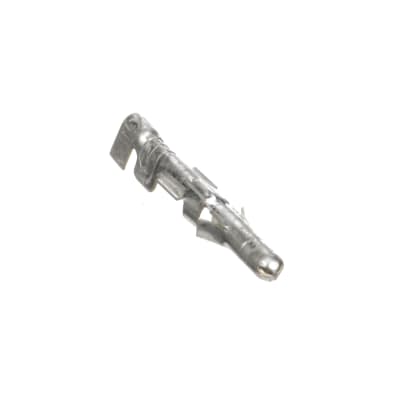

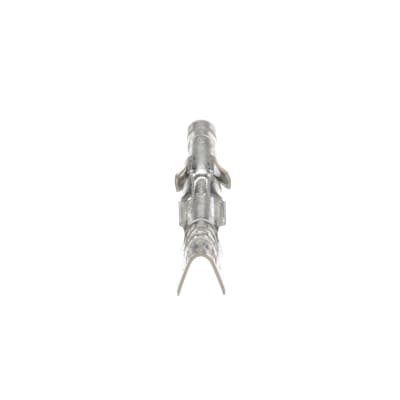

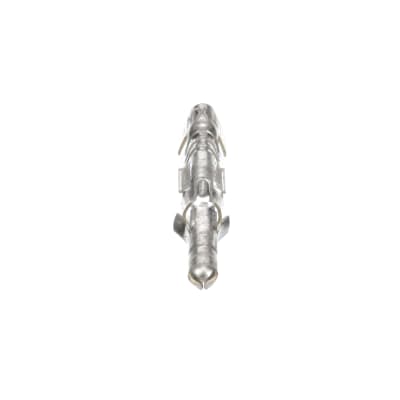

Molex Incorporated - 02-09-2118 - CRIMP TYPE TERMINALS; STANDARD SERIES; MALE View larger image View larger image
Image may be a representation.
See specs for product details.

Molex Incorporated CRIMP TYPE TERMINALS; STANDARD SERIES; MALE
Mfr. Part#:
02-09-2118

Allied Stock#: 70190616

 RoHS Compliant Part


View More from Molex Incorporated >>
Pricing (USD) & Availability
Standard Pricing
$0.132 (Each)
1$0.132
50$0.125
100$0.119
500$0.113
Availability

44484 can ship immediately.

Request Lead Time

Minimum Quantity: 1 |  Multiples Of: 1

Specifications

Alt Mfr.s Type: 1380-(P901)L
Brand/Series: Standard 093 Series

Overview

Standard .093" Pin and Socket Connectors
Standard .093" pin and socket power connectors from Molex provide a flexible design choice for medium-power applicationsMolex's Standard .093" pin and socket power connectors are an industry standard connector system based on an .093" pin diameter. Molex’s 2.36mm diameter terminals are used in the 5.03mm pitch Standard .093" and 6.71mm pitch 3191 products.

The terminals can be used in either crimp housings or crimp receptacles and are capable of carrying up to 14.0A (9.0A with the largest circuit size housings; 17.0A with high-current/low-force terminals). The system is available in wire-to-wire and wire-to-board configurations, up to 15 circuits.

Accessories

material - material number - description

Molex Incorporated extraction tool
$39.69each

material - material number - description

Molex Incorporated Extraction Tool; HT2038
$20.18each

material - material number - description

Molex Incorporated hand crimp tool
$296.22each

material - material number - description $63.47each
